New Mobile Concrete Batching Plant 25-90 m³/h | YHZS25 YHZS35 YHZS60 mobile concrete plant
≈ €23,670
Zhengzhou
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
+86 150 389...
Show
+86 150 3895 2113
China
China, Zhengzhou
China, Zhengzhou
China, Zhengzhou
China, Zhengzhou
China, Zhengzhou
China, Zhengzhou
China, Zhengzhou
China, Zhengzhou

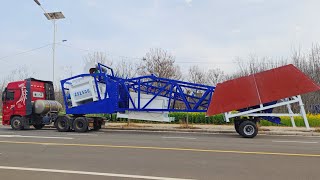

Our YHZS series is a true mobile concrete batching plant mounted on a trailer chassis. It can be towed by a truck tractor for fast transportation between job sites, making it ideal for road construction, bridges, railways, tunnels and temporary concrete projects.
Main Features
- True trailer-mounted mobile design
- Easy transportation by truck tractor
- Quick installation and relocation
- Compact structure and small footprint
- Fully automatic computer & manual panel control
- Stable weighing accuracy
- Twin shaft compulsory concrete mixer
- Suitable for commercial and project concrete production
Available Models
- YHZS25 – 25 m³/h
- YHZS35 – 35 m³/h
- YHZS60 – 60 m³/h
- YHZS90 – 90 m³/h
Main Technical Specifications
- Capacity: 35 m³/h
- Mixer: JS750 Twin Shaft Concrete Mixer
- Aggregate Batcher: PLD1200 (4 bins)
- Cement silo: 20-100T
- Screw Conveyor: Ø219 × 11 m
- Discharge Height: 3.915 m
- Cycle Time: 1 minute
- Total Installed Power: 65 kW
- Total Weight: 13 Ton
- Power Supply: 380V / 50Hz / 3 Phase (customized according to local voltage)
Weighing Accuracy
- Aggregate: ±2%
- Cement: ±1%
- Water: ±1%
- Additive: ±1%
Standard Configuration
- JS750 Twin Shaft Mixer
- PLD1200 Four-bin Aggregate Batcher
- Chevron Belt Conveyor
- Water Weighing System
- Cement Weighing System
- Additive Weighing System
- Air Compressor & Pneumatic System
- Trailer Chassis with Axles, Suspension and Air Brake
- Truck Tractor Towing System
- Bosure Computer & Manual Control System
- Control Room with Air Conditioner
- Printer Included
- Schneider Electrical Components
Control System
The batching plant is equipped with the Bosure computer control system, one of the leading batching control brands in China, providing fully automatic and manual operation. Schneider electrical components ensure reliable and stable performance.
Optional Equipment
- Cement silo (50T–500T)
- Screw conveyor
- Cement feeder
- Ice machine
- Chiller
- Concrete pump
- Wheel loader
Applications
Suitable for:
- Road construction
- Highway projects
- Bridge construction
- Railway projects
- Building construction
- Remote job sites
- Temporary concrete production
Factory direct supply. OEM & customized configuration available. Contact us for layout drawings, quotation and shipping solution.
