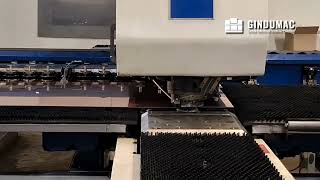

Trumpf Trumatic 500 turret punch press
Kaiserslautern
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
+49 162 40...
Show
+49 162 4027581
Germany, Location:essen
Germany, Dormagen
Germany, Pullach
Germany, Hamburg
Germany, Niederlangen
Germany, Menslage
Germany, Schora
Germany, Hamburg
Germany, Bakum
Germany, Hamburg
€760
≈ ZWL 284,800
≈ US$882.70
Germany, Bad Saulgau
Germany, Saarlouis
Germany, Salzgitter
Germany, Pullach
Germany, Bakum
Germany, Groß Ippener
Germany, Dorsten
Germany, Bovenden
Germany, Hamburg
Germany, De-49661 Cloppenburg
Machine Benefits
Technical Machine Benefits
Tool change time: approx. 1. 5 - 5 seconds
Number of tool positions: 20 (y1300) 21 (y1600)
Number of claws: 2 pieces, 3 or 4 optional
Pneumatic connection: 8 nm3/h at 6 bar
Max. Punching diameter: 76. 2 mm
Extra Information
Max. Working Area:
2500 x 1300 mm (Y1300)
Max. Workpiece Weight:
150 kg (Y1300)
Space Requirement:
6900 x 5800 mm (Y1300)
Weight of the Machine:
Approx. 11050 kg (Y1300)
Height of the Machine: 2200 mm
Max. Stroke Rate:
900 per minute (Y1300)
Cutting Speeds:
X-axis: 90 m/min
Y-axis: 60 m/min
Simultaneous: 108 m/min
C-axis: 360/s
Accuracies:
Position Deviation: +/- 0.1 mm
Average Position Spread: +/- 0.03 mm
Machine History
Material thickness
8 mm
application type: Punching
Location: Germany
machine type: CNC Punch Press
Number of Axes: 2
Punching Force: 220 Kn
